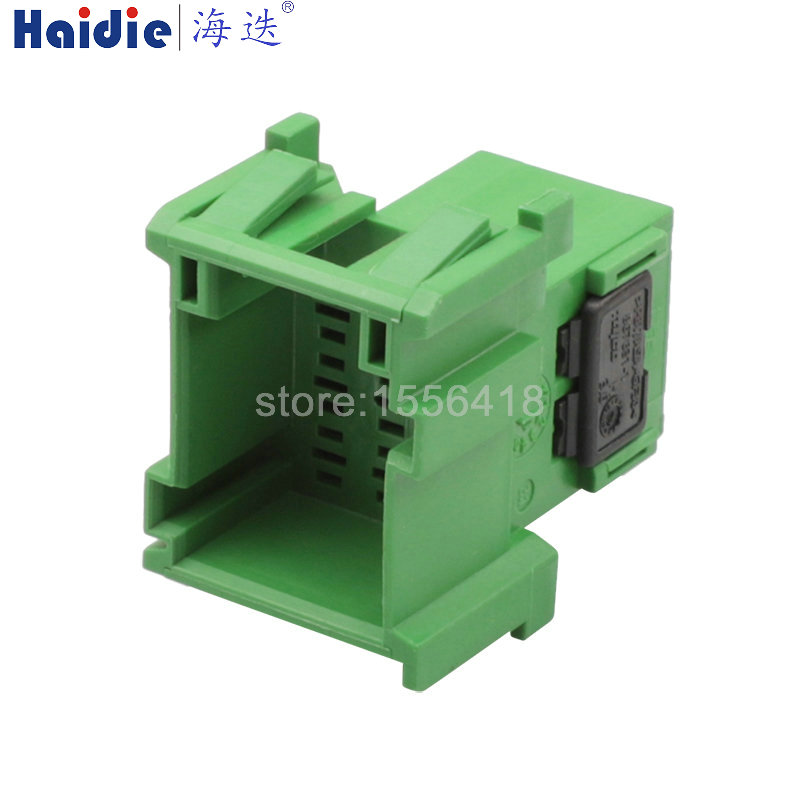

Automotive wiring harnesses are made up of many connectors that connect different parts of the vehicle’s electrical system. Fabricating automotive connector harnesses requires the use of a range of specialized tools to ensure high quality harnesses.
First, making a car connector harness requires the use of a wire stripper. This tool is used to remove the insulation on the outside of the cable so that the wires can be inserted into the connector. When using a wire stripper, be careful not to strip too deep, which can damage the wires.
Secondly, crimping tools are crucial tools in making automotive connector harnesses. This tool is used to crimp wires to connector pins to ensure a reliable electrical connection. When using a crimping tool, make sure the pins are properly inserted into the wire end and crimp with proper pressure.
Third, pliers are a tool often used when making automotive connector harnesses. Pliers can be used to adjust the metal clamp inside the connector to ensure a secure mechanical connection between the connector and the wire. In addition, cable ties are also required to make automotive connector harnesses. Ties are used to secure multiple connectors and wire bundles together to keep the wire bundles neat and organized. When using zip ties, make sure the knot is tight and avoid overtightening and damaging the connector.
In addition, for special shapes or connector harnesses that require special protection, heat shrink tubing or insulating sleeves may also be required for protection. Heat shrink tubing and insulating sleeves provide additional insulation and protection to prevent damage to the wiring harness in harsh environments.
To sum it up, tools like wire strippers, crimping tools, pliers, cable ties, and heat shrink tubing or insulating sleeves are all you need to make an automotive connector harness. Correct use of these tools and operation in accordance with the established standards and specifications can ensure that the produced automotive connector harness is reliable in quality, high in safety performance, and can meet the requirements of the electrical system.
